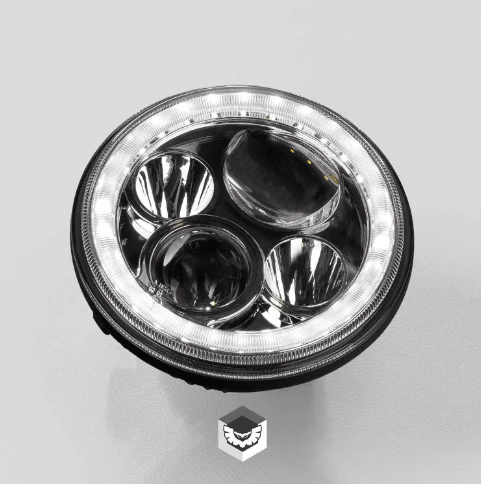

IRIS 7 INCH LED HEADLIGHT - CHROME (5700K)
FINALLY, A WORTHY 7" LED HEADLAMP
You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo park light, the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).
Ā
PERFORMANCE THAT SURPASSES THE VERY BEST
Ā
The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.Ā
Ā
ADR COMPLIANT
Ā
The IRIS falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.
Ā
THE NITTY GRITTY.
Ā
Our 7 Inch Iris Chrome LED Driving Lights should be the first step when improving your motorcycles' light output. Complete with High and Low beam as well as a full LED halo ring park light, the IRIS 7" Ā is the perfect replacement for your existing headlight.Ā
KEY PERFORMANCE METRICS
- ADR Approved E-Mark CEĀ
- Proper Right Hand Drive Beam Geometry
- H4 AdaptorĀ
- High Beam 1 Lux @ 235mĀ Ā
- Low Beam 1 Lux @ 141mĀ
PERFORMANCE BUILD QUALITY
- Anodized Polyester Powdercoat
- Lexan Polycarbonate (PC) Lens refractor
- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years
COMPATIBLE MODELS:
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 2007-2015 Jeep Wrangler 2-Door (JK)
- 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
- 1982 - 1991 Mitsubishi Pajero (L040)Ā
- Land Rover Defender
- 70 Series Toyota Landcruiser with round headlampĀ (Needs additional H4 CANBUS to resolve negative switching)
- 60 Series Toyota Landcruiser with round headlampĀ (Needs additional H4 CANBUS to resolve negative switching)
- Toyota FJ-40/45/47Ā (Needs additional H4 CANBUS to resolve negative switching)
- GQ PatrolĀ
- Harley Davidson Motorcycles
- Mercedes BenzĀ G Wagon
- Kenworth Trucks with 7 inch round headlight
Ā
TECH SPECS
Ā
| LED | High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED Park Light: 30x 1.5w Osram |
| RAW LUMENS | High Beam: 2000Lm Low Beam: 1400Lm Park Light: 150Lm |
| AMP DRAW | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v |
| LIFESPAN | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30Ā°C~+60Ā°C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX |
High Beam: 235m Park Light: 8m |
|
WEIGHT (each) |
1.140kg each |
| DROP IN REPLACEMENT FOR | #6014, 6015, 6016, H6024 and Par 56 headlamp designs |
|
ADR COMPLIANCE |
ADR 46/00 ADR 49/00 |
Ā
WHAT'S INCLUDED
Ā
-
1 x 7 inch STEDI IRIS LED HeadlightĀ
