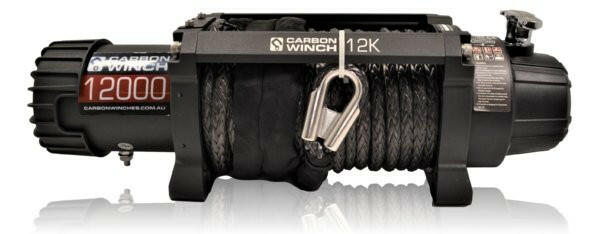

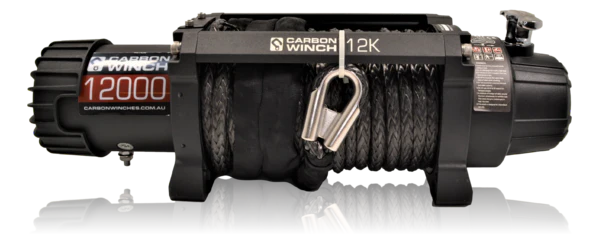

Carbon Winch 12k 12000lb Electric 12v 4x4 Winch

Version 2 2021 Model - Now Available IP68 Waterproof

5 Year Australian Warranty

Lightest 4x4 Winch

Get A Winch You Can Trust - Get a Carbon Winch

What do you get in the kit?

Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
24m x 10mm high strength synthetic winch rope
1 x Carbon winch hook
1 x 500A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
1 x long black battery cable
1 x Isolator switch
1 x battery to isolator switch cable
1 x Wireless remote
1 x Wired remote
1 x Multifit CNC Alloy fairlead (offset and standard position)
4 x Mounting bolts
3 x Allen keys
2 x additional longer mounting bolts (fairlead mounting)
2 x additional nuts for remote mounting solenoid box
1 x Hook hand saver strap
1 x Carbon lanyard
1 x Carbon stubby cooler
Installation manual Included, comprehensive, revised version for V2: link here: CW-12K V2 Install Guide
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 2 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

The all new feature packed Ver.2 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.

We also have on offer additional parts to ease the burden of the complexities of a winch installation as well. Wired plug extension and isolator switch bracket

The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection - 6 - Can withstand dust and dirt. 8 - Can be submerged under freshwater for 30 minutes up to 1.5mtrs depth, but not during operation.

You want the reliability of a winch that will perform when you need it to, time after time.

With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.

If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.

Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg

Buying a winch for the first time?

Check out our blog post with some great info: https://www.carbonoffroad.com.au/blog/carbon-winches-blog-news/buying-a-winch-for-the-first-time/

Get a winch you can trust - Get a Carbon Winch

Carbon Winches Warranty -

Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty

Winch Design Features

Designed by an Australian offroad business for the harsh Aussie and international conditions
Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
6.2HP series wound 12 volt electric motor (24 volt option)
The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
Electroplated planetary gear sets for long life
3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
All other internals are fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch

Carbon Winch History

In conclusion you can be rest assured of the history of the brand. Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. After that, the Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.

But in addition, we didn't stop there - We made the winch even better.

Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. A strong following in the Australian market developed with proven results across thousands of customers and 5 years on the market. A full redesign of the winch over a 6 month period between January and June 2021, results in the V2 CW-12K, a culmination of 5 years of using, supplying and receiving feedback from our customers and dealer network as we improved on many aspects of the original market proven winch design.

Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.

Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. Having developed a strong following in the Australian market with proven results across thousands of customers and 5 years on the market, we conducted a full redesign of the winch over a 6 month period between January and June 2021, the outcome was the Ver.2 CW-12K,which was the culmination of 5 years of using, supplying and receiving feedback from our customers and Dealer network as we improved on many aspects of the original market proven winch design.

Technical features

Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.

Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.

The main features include:

6.2 HP Series wound motor
216:1 ratio 3 stage planetary gearbox
Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
Rotating ring gear free spool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
500amp sealed solenoid unit and wired handle remote control and wireless
Remote control unit

Specifications

Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
Drum Diameter/Length: 64mm x 224mm
Synthetic Rope:24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 254mm x 114.3mm
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 2 - 19.0KG

Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

12V DC performance specs (first layer of drum)
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	43.3(13.2)	70 amps	1/12,000 (5450)
2000 (910)	11.5 (3.5)	130 amps	2/9800 (4450)
4000 (1810)	9.2(2.8)	170 amps	3/8300 (3770)
6000 (2720)	7.9 (2.4)	220 amps	4/7200 (3270)
8000 (3630)	6.9 (2.1)	265 amps
10000 (4540)	5.6 (1.7)	320 amps
12000 (5450)	4.6 (1.4)	390 amps

Carbon Winch 12K Package contents included in purchase price
Description	Quantity	Comment
Carbon Winch CW-12K	1	24mx10mm Synthetic Rope
Control box 500 amp	1	1pc 500A solenoid and battery cables + wireless remote 1 x long black battery cable
Hand remote control & Wireless remote control	1 each	Plug in and wireless operation
CNC Billet 6061 T6 Alloy Black Hawse Fairlead	1	Laser Etched Carbon Winches two-position standard/offset fairlead
Hardware bag	6sets	4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
Owners Manual	1	Included
Carbon Winch Hook Kit	1	Included
Red Hook strap	1	Included
